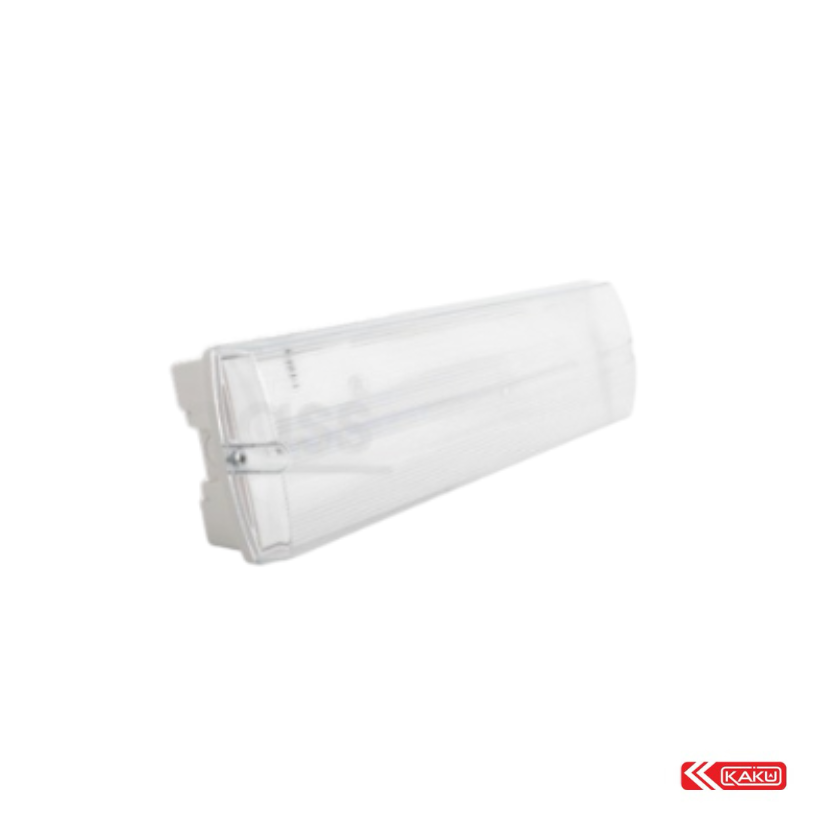

BULKHEAD EMERGENCY LIGHT
Product Overview
The Americass Bulkhead Emergency Light is a high-performance, weather-resistant emergency illumination solution engineered for reliable operation during unexpected power outages. Designed for both residential and commercial environments, this unit activates instantly when the main power supply fails, ensuring continuous illumination to guide occupants safely through corridors, staircases, exits, and other critical areas. Its robust build quality, energy-efficient LED system, and advanced LiFePO4 battery technology make it an essential safety component for homes, offices, industrial facilities, warehouses, parking structures, and public buildings.
Crafted with an injection-molded ABS housing, the light is highly resistant to impact, corrosion, heat, and harsh weather conditions. The fixture is rated IP65, providing full dust protection and resistance to water jets—ideal for both indoor and semi-outdoor installations. The unit is equipped with 18 high-efficiency SMD LEDs delivering a total illumination power of 3.6W, ensuring uniform lighting distribution with minimal energy consumption.
Its integrated 3.2V 3.2Ah LiFePO4 battery offers superior lifespan, safety, and thermal stability compared to conventional emergency lighting batteries. With a discharge duration of 180 minutes, it provides reliable illumination long enough for evacuation, maintenance, or emergency inspection activities.
Key Features
-
Automatic Power Failure Activation
Immediately switches on during power outages to maintain continuous illumination and safety. -
High-Efficiency LED Lighting
Equipped with 18 SMD LEDs (0.2W each) providing bright, energy-efficient 3.6W output. -
IP65 Weatherproof Rating
Fully protected against dust, rain exposure, and moisture—ideal for harsh and outdoor environments. -
Durable ABS Housing
Injection-molded body designed to withstand impact, heat, UV exposure, and long-term use. -
Flexible Installation
Suitable for surface, ceiling, and recessed mounting, simplifying integration into various environments. -
Long Backup Time
Provides up to 180 minutes (3 hours) of emergency lighting using LiFePO4 battery technology. -
Flame-Retardant Construction
Engineered with materials that resist ignition and slow flame spread for added safety compliance.
Detailed Specifications
Mechanical & Housing
-
Material: Injection-molded ABS
-
Protection Rating: IP65
-
Flame Retardant: Yes
-
Dimensions: 339.5 × 105 × 64 mm
-
Installation Options:
-
Surface mount
-
Ceiling mount
-
Recessed mount
-
Optical Performance
-
LED Type: 18 PCS SMD LEDs
-
LED Power Consumption: 0.2W per LED (total 3.6W)
-
Light Output: Bright, uniform illumination suitable for emergency pathways, hallways, and exits.
Electrical Specifications
-
Input Voltage: 220–240VAC, 50/60Hz
-
Operating Power: 2W, 150mA
-
Switching Mode: Automatic changeover during power loss
Battery System
-
Battery Type: 3.2V 3.2Ah LiFePO4
(Lithium Iron Phosphate – high stability, long cycle life, enhanced safety) -
Charging Time: 24 hours
-
Emergency Discharge Time: 180 minutes
-
Operating Temperature: 0°C to 40°C
Safety & Compliance
-
UL certification marks displayed (as shown)
-
Flame-retardant housing
-
Overcharge and short-circuit protection
-
Designed to meet global emergency lighting standards
Applications
The Americass Bulkhead Emergency Light is ideal for:
-
Residential buildings and apartments
-
Office complexes and commercial towers
-
Hospitals and medical facilities
-
Schools, colleges, and institutions
-
Warehouses and industrial workshops
-
Parking garages and basements
-
Hotels, malls, retail shops, and public facilities
-
Outdoor passageways, loading docks, and covered walkways
Advantages
-
Ensures safety and visibility during emergencies
-
Highly energy-efficient and long lasting
-
Durable construction suitable for demanding environments
-
Simple installation and low maintenance
-
Provides reliable, extended backup lighting
-
Ideal for compliance with emergency lighting regulations
